AGV / AMR Cycloidal Gearbox

Compact RV and cycloidal reducer support for AGV drive modules, steering units, and mobile robot mechanisms.

Target Buyer:For mobile robot manufacturers seeking durable reducers for repeated starts, stops, and floor impacts.

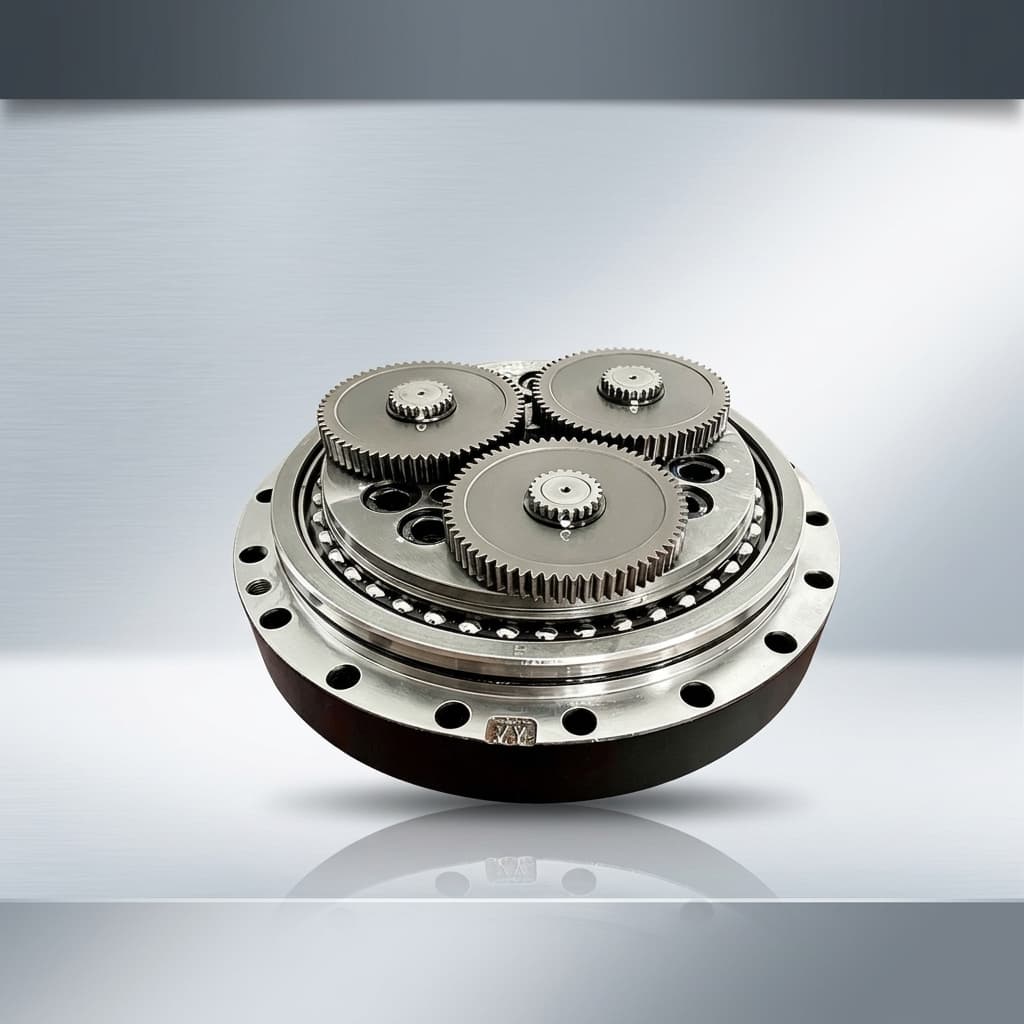

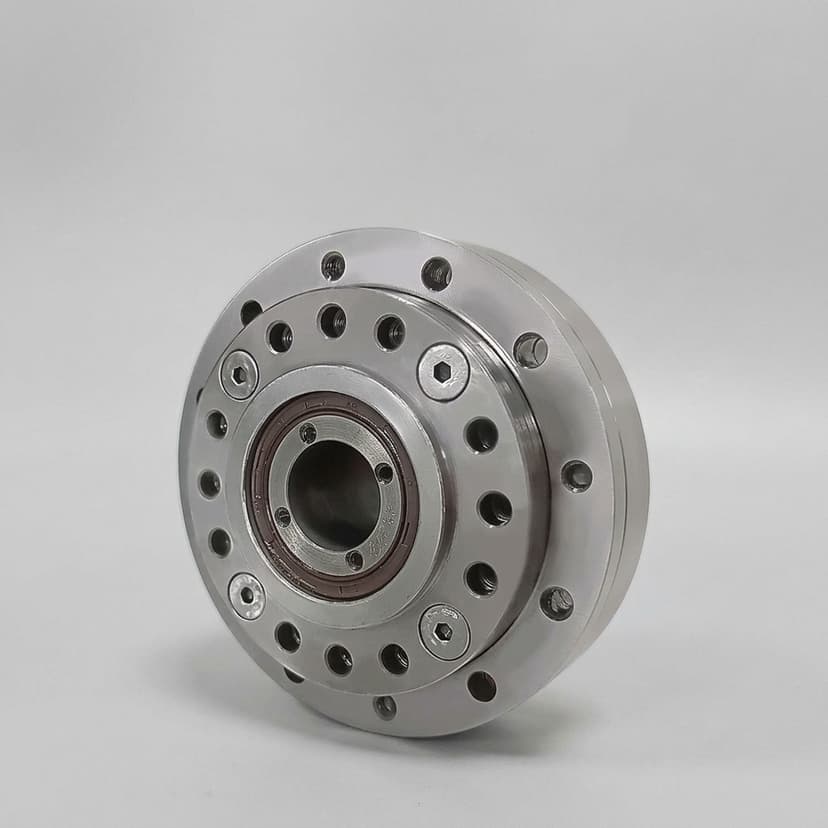

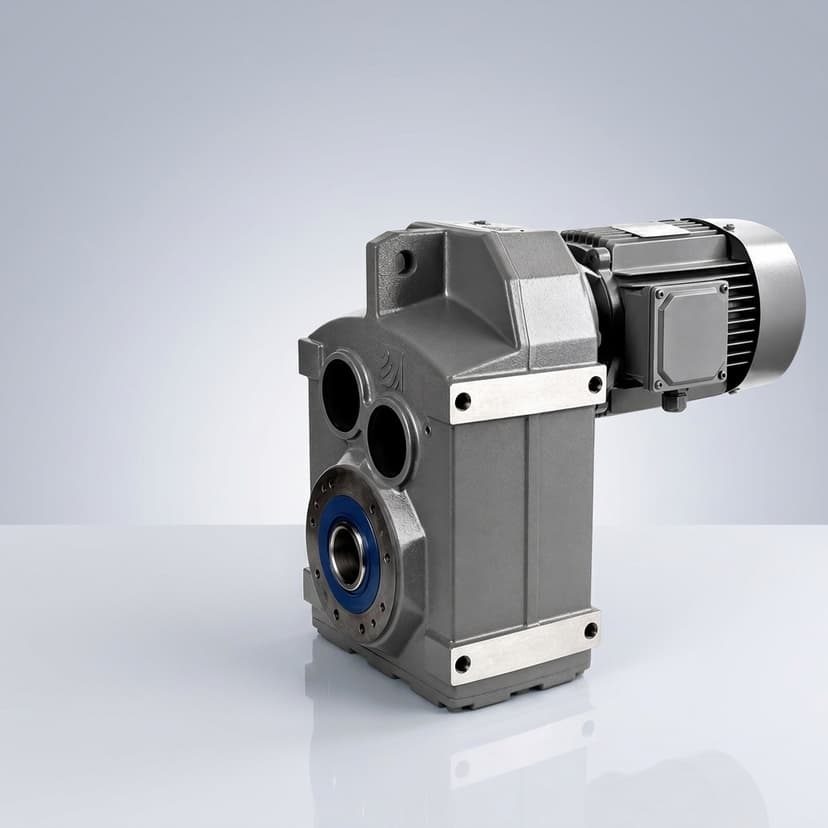

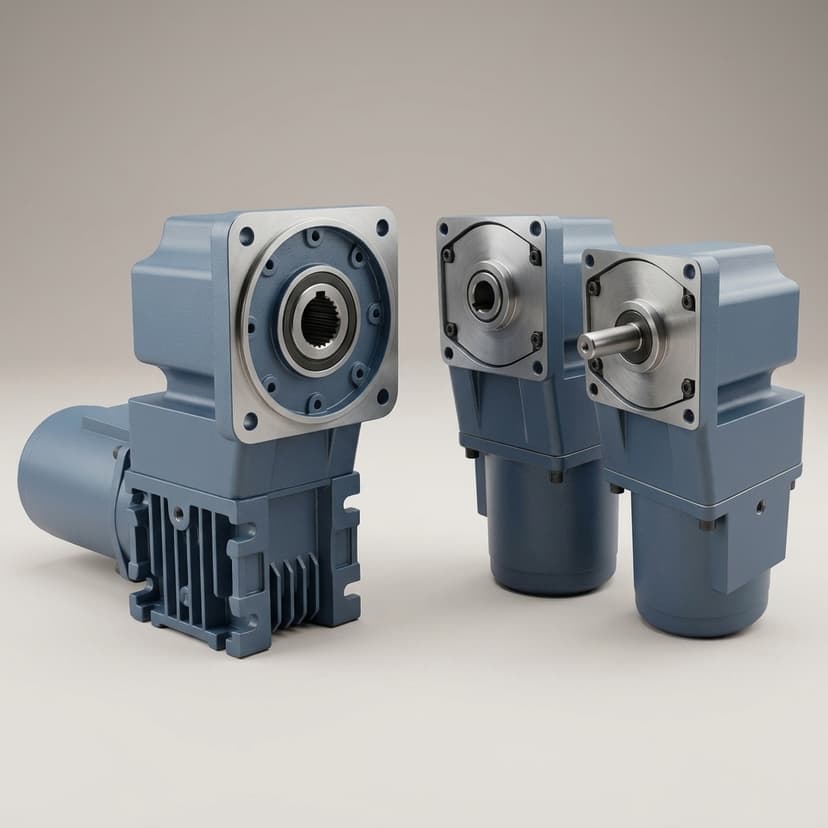

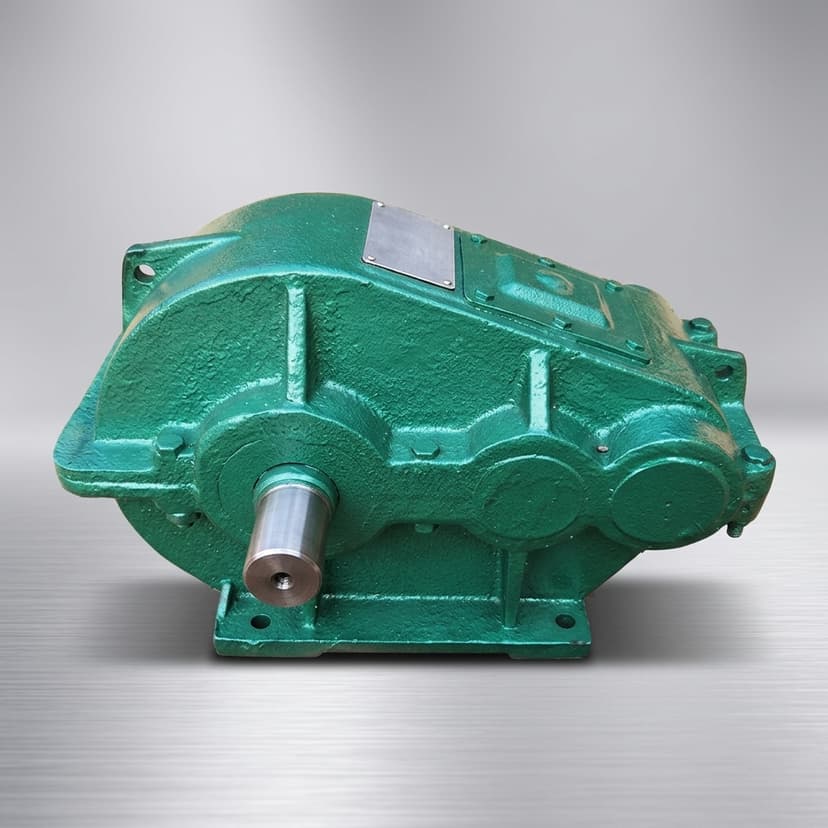

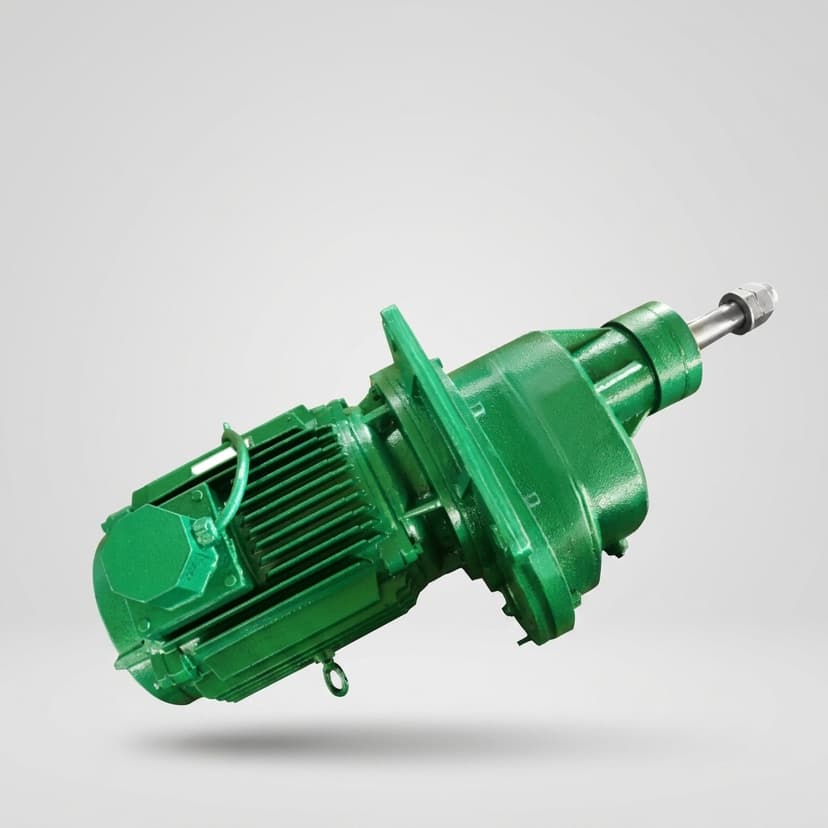

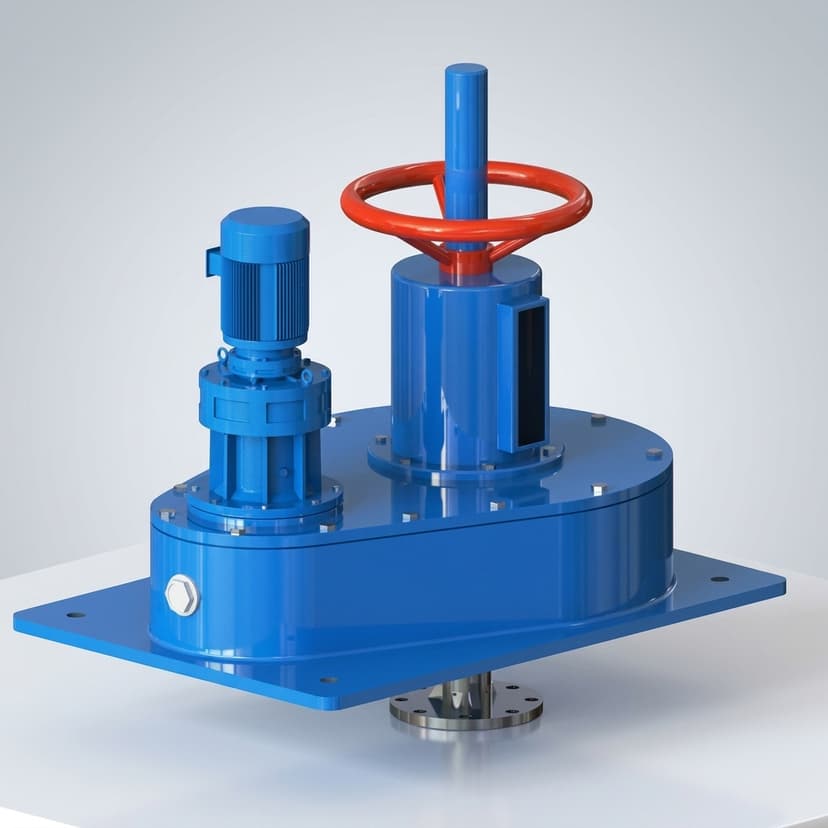

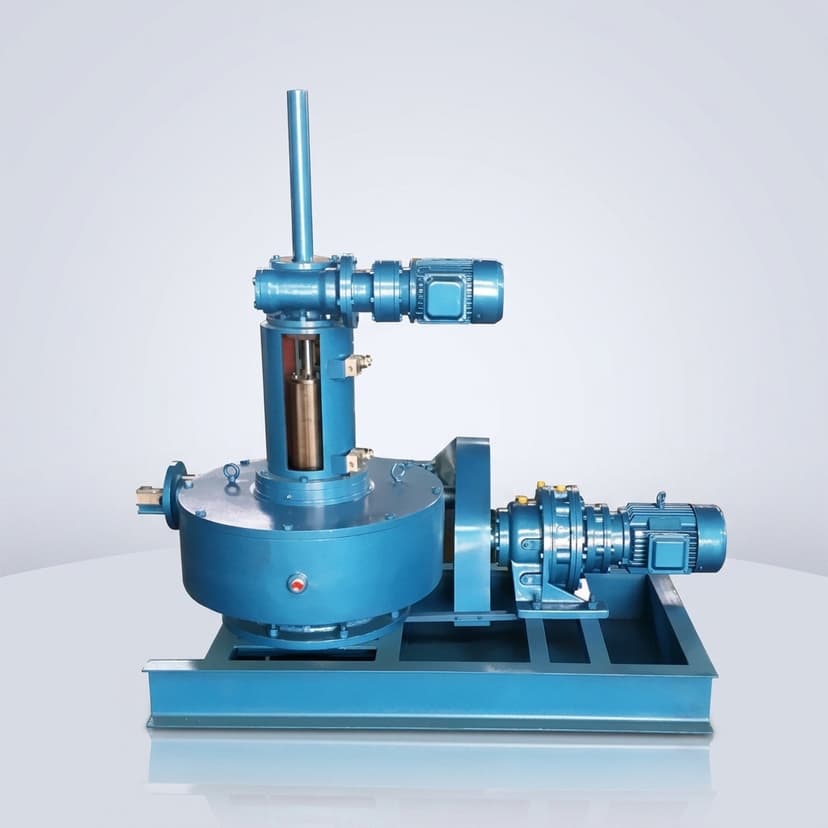

Precision AGV and AMR cycloidal gearbox for mobile robot modules

Solution Highlights

High shock-load tolerance
Compact packaging for mobile platforms
Custom interface support for drive modules

Common Use Cases

AGV steering
AMR drive modules
Warehouse robots

Implementation Focus

Shock and vibration profile
Wheel module integration
Sealing, lubrication, and service interval
Acceptance test planning for backlash, rigidity, noise, thermal rise, runout, and buyer-side motion validation

Factory and Supply Capability

Application engineering maps the buyer use case to the correct heavy-duty RV reducer, Nabtesco alternative, micro cycloid, hollow-shaft, or right-angle gearbox path.
Shanghai Chaifu Robot supply covers full-size heavy-duty RV reducer programs for industrial robots, welding robots, large-payload joints, rotary tables, and Nabtesco replacement projects.
Dongguan Weibailx Intelligent Motion supply covers precision micro cycloid reducers, hollow-shaft reducers, and right-angle compact gearboxes for humanoid, AGV/AMR, cobot, and compact robotic joint programs.
Factory-side support includes drawing review, ratio and torque screening, sample validation planning, outgoing inspection records, export packaging, and repeat-order delivery coordination.

Buyer Decision Criteria

Criterion	Buyer Question	Evidence to Request
Shock and floor-impact margin	Can the reducer handle loaded starts, stops, wheel impacts, docking events, and emergency stops?	Vehicle mass, wheel load, peak torque, floor condition, duty cycle, and shock factor.
Drive or steering architecture	Is the reducer being used in drive, steering, lift, or combined wheel-module architecture?	Module drawing, motor position, output orientation, ratio, speed target, sealing requirement, and service interval.
Batch maintainability	Can the gearbox be inspected and replaced consistently across fleet production and field service?	Incoming inspection method, spare strategy, forecast, packaging requirement, and maintenance interval.

Sample Validation Workflow

Pre-check application, model, ratio, torque, backlash, flange dimensions, input interface, and annual forecast before quotation.
Review drawings or current reducer datasheets to confirm mounting compatibility and hidden integration constraints.
Release sample order with agreed acceptance criteria for backlash, noise, thermal rise, runout, load test, and visual inspection.
Compare sample results against buyer-side robot or module test data, then freeze revisions before pilot production.
Move approved projects into repeat production with forecast, packaging, inspection records, and delivery cadence aligned.

Procurement Notes

Send the existing reducer brand/model when the project is a replacement program; model number alone is useful but not enough for final approval.
Include destination country, required delivery date, sample quantity, and annual forecast so lead time and pricing are realistic.
For custom interfaces, attach revision-controlled drawings and mark dimensions that cannot change after robot joint approval.

Open RFQ page for AGV / AMR Cycloidal Gearbox

Application Evaluation Matrix

Evaluation Metric	Typical Range	Buyer Relevance
Shock load margin	Application-specific	Mobile robots see frequent impacts and rapid acceleration cycles.
Wheel-module load case	Vehicle mass, wheel load, peak torque, and floor impact	Mobile robots repeatedly see starts, stops, docking impacts, and emergency braking.
Service interval	Fleet maintenance and spare strategy by buyer	AGV and AMR reducers must be easy to inspect, replace, and repeat across fleet production.
Motion-profile fit	Payload, inertia, speed, acceleration, and duty cycle reviewed together	Application pages should help buyers size for the real robot cycle instead of a generic reducer catalog line.
Validation gate	Fit check plus backlash, noise, temperature, repeatability, and load test	Gives the buyer a concrete way to approve samples before pilot or batch supply.

RFQ Preparation Checklist

Vehicle weight and wheel load
Drive or steering application
Ratio and torque target
Mounting envelope
Motion profile, acceleration, deceleration, duty cycle, shock case, and lifetime target
Sample acceptance method, pilot-lot quantity, annual forecast, destination, and required delivery date

Risk and Mitigation

Reducer sized only by continuous torque: Include peak torque, floor impact, and emergency-stop loads.
Application described too broadly: Tie the reducer choice to axis, load case, duty cycle, interface, and acceptance evidence before quotation.
No internal owner for sample approval: Confirm who signs off fit, motion data, inspection report, and pilot release before samples ship.

Recommended Products

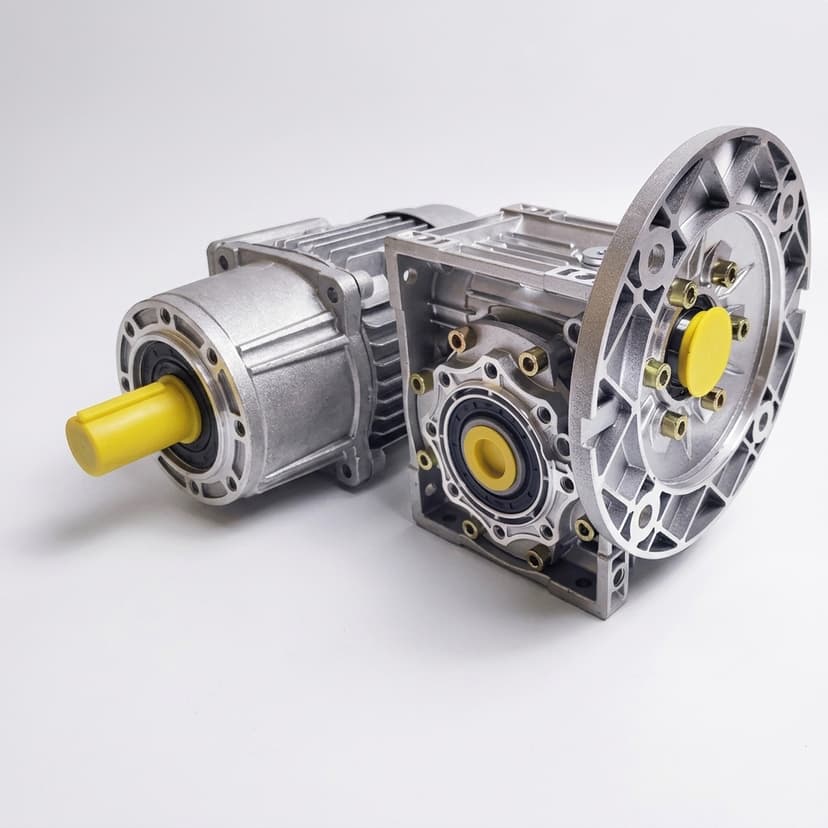

Compact cycloidal reducer for AGV drive and steering assemblies

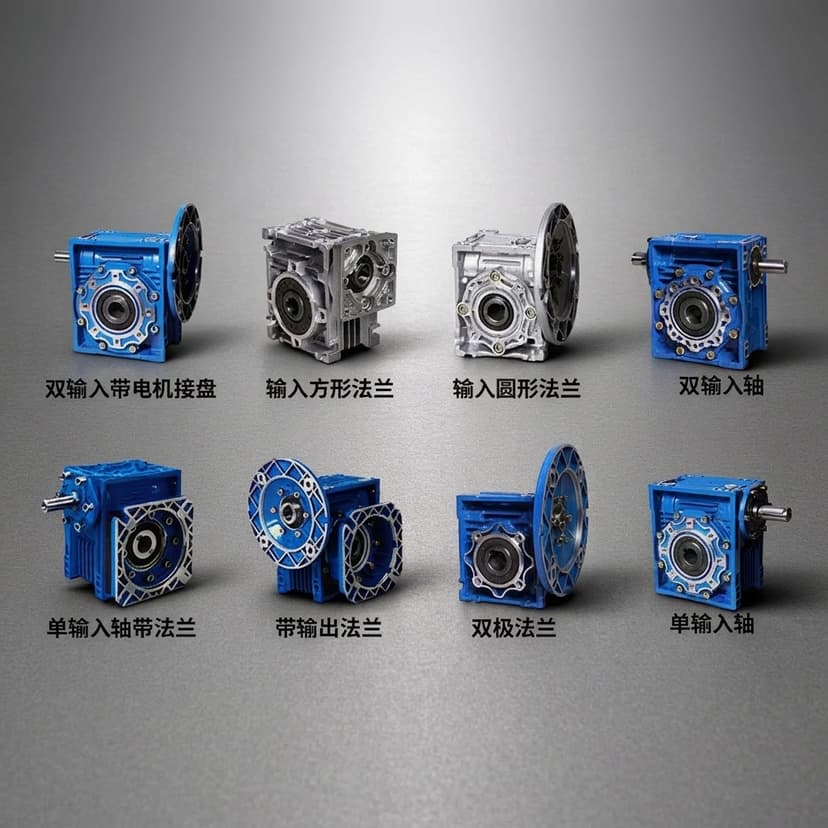

Right angle cycloidal gearbox for AGV steering applications

Buyer FAQ

Can one reducer be used for both drive and steering?

Sometimes, but the torque direction, duty cycle, and packaging need separate review.

How do you select a reducer for a specific robot application?

Start with axis, payload, inertia, output torque, speed, ratio, duty cycle, shock case, target backlash, interface drawing, and sample acceptance method.

Can one application page cover both new designs and replacements?

Yes. New designs focus on sizing and packaging, while replacements also require the existing model, ratio, drawings, and fit-check criteria.
